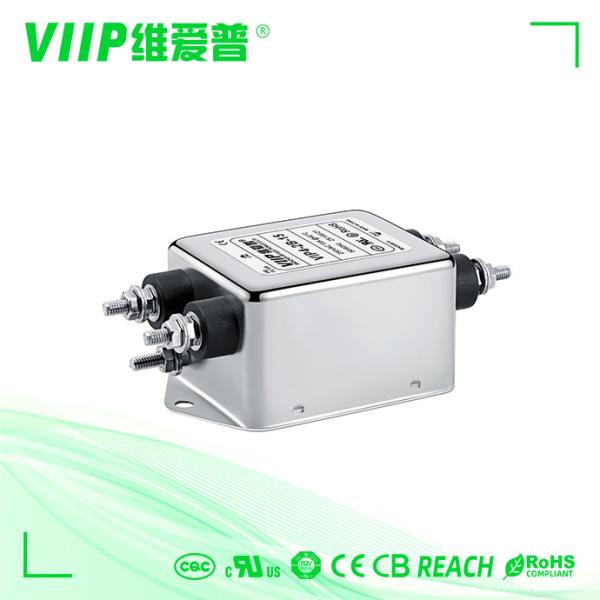

Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment

Name: Rated Current 1A10A AC Single Phase RFI Filter For Fitness Equipment
Brand: VIIP WeiAiPu
Price: 1 USD

Brand Name : VIIP WeiAiPu

Model Number : VIP4-2B-03

Certification : CE ROHS,CE CQC,ISO; TUV

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 2000 pcs within 10-15 days

Packaging Details : 33*33*18

Type : AC SINGLE PHASE FILTER

Rated voltage : 110/250VAC

MOQ : 1PCS

Application : Fitness equipment

Package type : Surface mount

Delivery Time : 5-10 Days for samples

Input Impedance : 500VDC/100MOHM MIN

Frequency Range : 150 kHz to 30 GHz

Storage Temperature : -40℃~+85℃

Item : EMI filter

Operating Frequency : 50/60HZ

Nominal Center Frequency : 50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions : Varies depending on model

Port : Shenzhen

Termination Style : Solder Pins

Rated Current : Different

Weight : 290g-1000g

Insulation Resistance : ≥100MΩ

Rohs Compliant : Yes

Humidity : ≤95%RH

Contact Now

SMPS AC Single Phase RFI Filter Rated Current 1A-10A for air purifier

Quick Detail:

Place of Origin	China
Model Number	VIP4-2B-03
Current	3A
Type	AC EMI Single phase Filter
Line To Line	1760VDC
Line to ground	2000VAC
Certificate	ISO9001 CE Rohs Reach
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.

Applications:

White household

Smart home

Smart terminal

Power supply

charging post

Air purifier

Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-2A-01	1A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-03	3A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-06	6A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-10	10A	<1.0mA	Fig4	Fig 1	- - -	0	- - -	170
VIP4-2B-06	6A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-10	10A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-20	20A	<1.0mA	Fig4	Fig 2	M4	0	- - -	321
VIP4-2B -50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	1400
VIP4-2B-100	100A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	2000
VIP4-2B-200	200A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	3000
VIP4-2C-01	1A	<0.5mA	Fig 1	Fig 3	M10	- - -	0	65
VIP4-2C-03	3A	<0.5mA	Fig 2	Fig 3	M10	- - -	0	95
VIP4-2C-06	6A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-10	10A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-20	20A	<1.0mA	Fig 5	Fig 3	M4	- - -	- - -	600
VIP4-2C-50	50A	<2.0mA	Fig 5	Fig 3	M6	- - -	- - -	1600

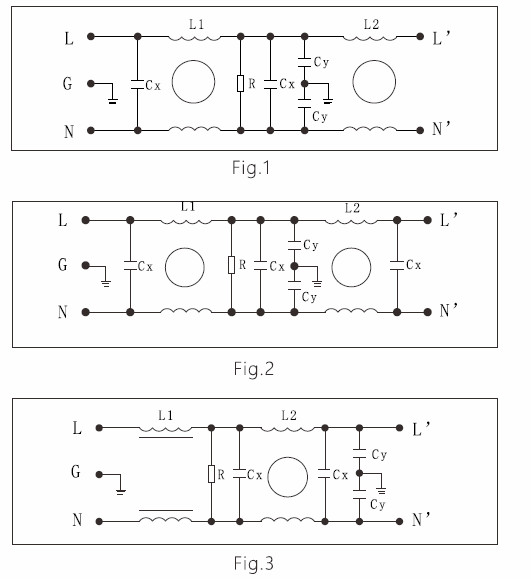

Electrical schematic:

Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment

Mechanical Dimension(Unit: mm)

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements

Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment

FAQ:

Q: Can you provide some samples before ordering formally?
A:Yes, samples can be provided.

Q: How can I pay?
A:T/T

Q:Do you provide customized products?
A:Yes, we can provide customized products.

Q:Do you test all products before shipping?
A:All the products will be 100% checked before the shipment.s.
