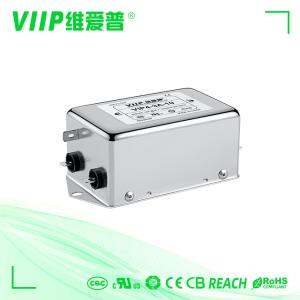

Single Phase AC EMI Power Line Filters For Fitness Equipment 10A
Quick Detail:
| Place of Origin | China |
| Model Number | VIP4-1A-10 |
| Current | 10A |
| Type | AC EMI Single phase Filter |
| Line To Line | 1760VDC |
| Line to ground | 2000VAC |
| Certificate | ISO9001 CE Rohs Reach |
| Operating Frequency | 50/60HZ |
| Temperature Range | 25 / 085 / 21 |
Single-Phase EMI Power Line Filters For Fitness Equipment 10A
General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Single-Phase EMI Power Line Filters For Fitness Equipment 10A Applications:
White household
Smart home
Smart terminal
Power supply
fitness equipment
Typical applications:
sports equipments ,steppers ,treadmills and other frequency inverter applications that requires high noise suppression
AC Double Stage EMI Filters For Sports And Fitness Equipment Specifications:
Tabulates:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C
Leakage Current [mA] | Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| screw | terminal block | wires |
| VIP1-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP1-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | SOA | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer Requirements
